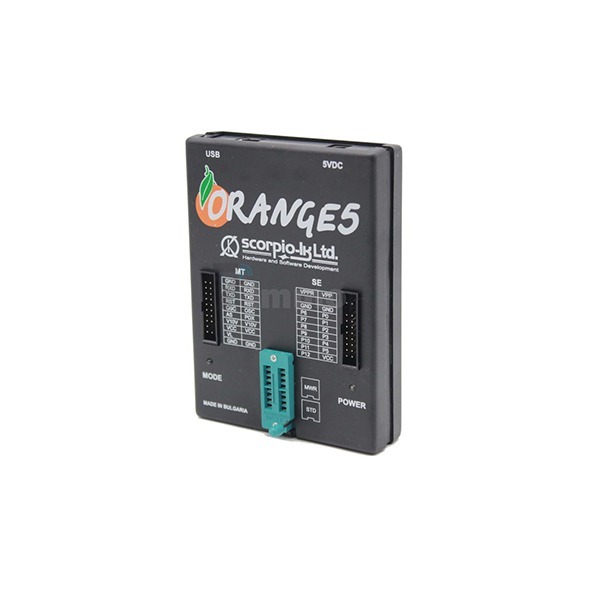

ORANGE 5 UNIVERSAL EEPROM-MCU PROGRAMMER

Universal EEPROM ve MCU Programmer

Orange5, is a professional reading, writing and programming device for MCU and EPROM (microcontrollers).
Unique among current serial programmers, it can be used to write to MCUs and EPROMs in many protocols;

ORANGE 5 Full Adapter Set Contents As Below

Click to Download Software

Technical information
USB power supply (USB2.0/3.0).
Universal, easy-to-fit panel ZIF16 for EEPROM
Checking contacts in sockets
Two expansion sockets compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current controls: Power supply voltage ( 2.0...5.0V ),
programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
High speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave loop generator with frequency (up to 24 Mhz) and output voltage (2.0...5.0V) adjustable.
Functional emulation capability of CDC class USB devices.
Built-in 32-bit virtual processor
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter).
Supported Operating Systems: Windows XP/7 32bit , Windows 7/8/8.1/10 64bit

CLICK HERE FOR DETAILED ADAPTER REVIEW

Extra software is available for purchase with the ORANGE 5 device. (Please contact for prices)

1- Immo HPX V10 (Click for details)

Software will show you more secret on how to completely enjoy the use Orange-5 programmer to read EEPROMS,TMS, MCUs, analyse data and solve immobiliser issues quickly.

2- Renesas SRS by CAN HPX (Click for details)

Software developed for Read/Write and clearing crash-data in Renesas processor based SRS blocks via CAN interface.

3- CarRadio & Nissan LCN V8 (Click for details)

Software developed for car radio & navigation decoding

4- NEC V850ES/SJ3 V850ES/SG3 UART V3.9 (Click for details)

Connection type
Orange-5 to UART 5 wires, in circuit system programing (GND RESET FLMD0 RXD TXD VCC).
Shows chip type, read state of security enabled.
Read, write, erase.
Activation read protection.
Work with quartz frequency 2,50 - 16,00 MHz.

5- Renesas/NEC V850E2 FLUR0RTX V3.0 (Click for details)

Connection type
Orange-5 to FLUR0RTX
Shows chip type, read state of security enabled.
Read, write, erase.
Activation read protection.
Work with quartz frequency 4,00 - 16,00 MHz

6- License M08V (Details)

License M08V for Orange-5 programmer currently supports SS scan and work with the following types of Motorola/Freescale controllers:
908AB32, 908AP32A, 908GP32, 908KX2, 908LJ12,908LJ24, 908LK24, 908QC16, 908GR16A, 908GR48A, 908GZ60.

7- ST92Fxxx

Supported processors:
ST92F120V1Q7, ST92F120V9Q7, ST92F124V1QB, ST92F150CV1QB, ST92F250CV2QB
Module Features:
In circuit system programing
FLASH read/write/erase
EEPROM read/write/erase
OTP read
Locked EEPROM read, write, erase if Flash is Unlocked!

8- RCDtools

Renault, Seat, Skoda, Volkswagen, V850ES/SG3, V850ES/SJ3, V850ES/FJ3, V850E/Dx3

9- Unlock13 Ford Visteon

FD2500, FD3000, FD4000,FD4500, FD5000, FD6000, FD7000, Mercedes TruckLine

10- M35080 Eraser

M35080 Eraser (without V series)

11- NDM457

NDM457
