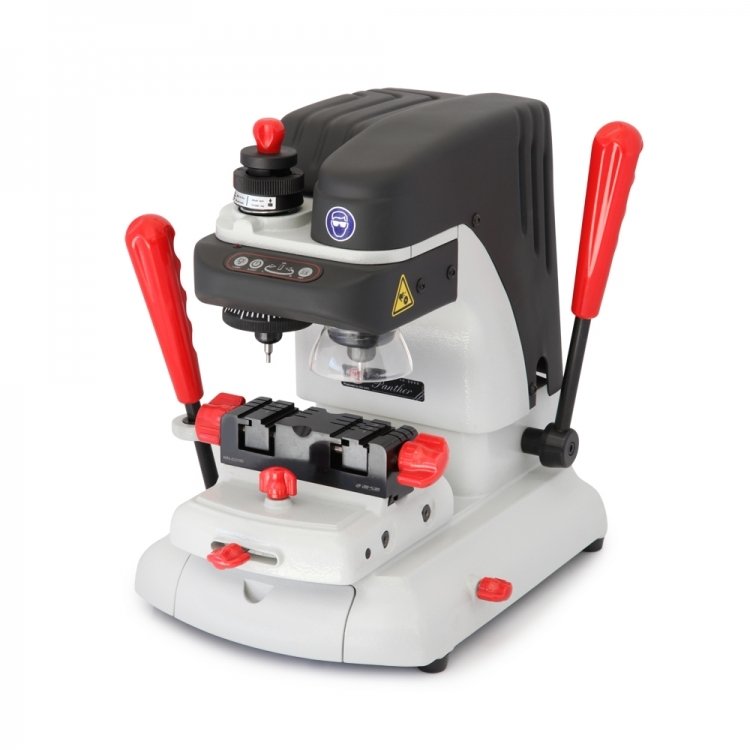

Ansan TR-2050 Panther Key Cutting Machine

Name: Ansan TR-2050 Panther Key Cutting Machine
Brand: NULL
SKU: ANSAN001
Availability: OutOfStock

37.307 RSD

Nema na zalihama

Šifra proizvoda: ANSAN001 Kategorije: Mašine za rezanje ključeva, Svi proizvodi Brend: NULL

Opis
Recenzije (0)

The TR-2050 Panther model has all the features required for laser and ball key duplication as well as many extras. Experience the privilege of having these features developed by the Ansan R&D team...

The main thing in a key machine is the vices that hold the key.

Equipped with the MN-02050 vise, the Panther model puts an end to the key holding principle with the conventional apparatus. In addition to the three different connection points on the vise, various surfaces on these sections offer you the opportunity to connect many key groups without the need for an apparatus.

All handles on the machine, such as hand-held key clamping handles, cutting handle, body lowering handle, are ergonomically designed. This design not only makes it easy to use while copying the key, but also ensures that the key connected to the vise is tightened with the right shape and strength.

The Motion Sensitive Run feature offers both safe and economical use with the engine running only during the key cutting process. This feature also automatically turns on the lighting of the machine when you start working. Even if you do not open the setting system when you start the setting process, Panther understands this and starts the system automatically. Some users, after the operation on one side of the key is finished, turn the key without turning off the breaker to process the other side, which causes unwanted accidents. Energy savings are also provided, as the machine does not operate outside of use.

You can use the Fix Feature fixation feature adapted to all axes in order to constantly repeat the fixed axis movements in the key duplication process and to eliminate your power consumption. With this feature, you can also minimize the fatigue on your cutter by making gradual cutting and keep the life of the cutting tool longer. For this, it is enough to turn the hand buttons on the X-Y-Z axes.

The working life and maintenance periods of mechanical buttons are short
Today, alternative control systems are needed because of the
The most used system among these are membrane buttons, you can use your machine safely.
It has been designed to allow you to control it for years and the machine
placed in an ergonomic position.

Since each of the tools used in the copying processes of Ball and Laser type keys is different, the tools are changed by changing the process. Since the dimensions of these tools are different from each other, a calibration is required to introduce these tools to the machine after the tool is changed. With the Electronic Sensitive Setting system developed for this calibration, you will be able to make a fast and high precision adjustment to your machine, moreover, in a few seconds...

COPYING GROUP

Technıcal features:

Engine power	:	150 w
Engine speed	:	6000 d/d
Number of Engine	:	1
Voltage*	:	220 V
Frequency*	:	50 Hz
consumption	:	0,15 Kw
Recycled Materials		✓
Max. Electrical Safety	:	✓
CE	:	✓
Procuct size \| Width	:	30cm
Product size \| length	:	42cm
Product size \| Height	:	34cm
Packaging\| Width	:	36cm
Packaging\| Length	:	48cm
Packaging\| Height	:	43cm
Weight Net	:	22kg
Weight Gross	:	23kg
