MULTI FREQUENCY TEST DEVICE

H&H REMOTE CONTROL FREQUENCY/ IR / LF COIL TESTER





[ User's manual ]

Thank you very much for purchasing our remote frequency tester, which our company has developed with years of experience and combined with the advanced technology of its domestic and foreign counterparts, to facilitate you to use the device correctly, please read this manual carefully first. operation.

01/Product Description

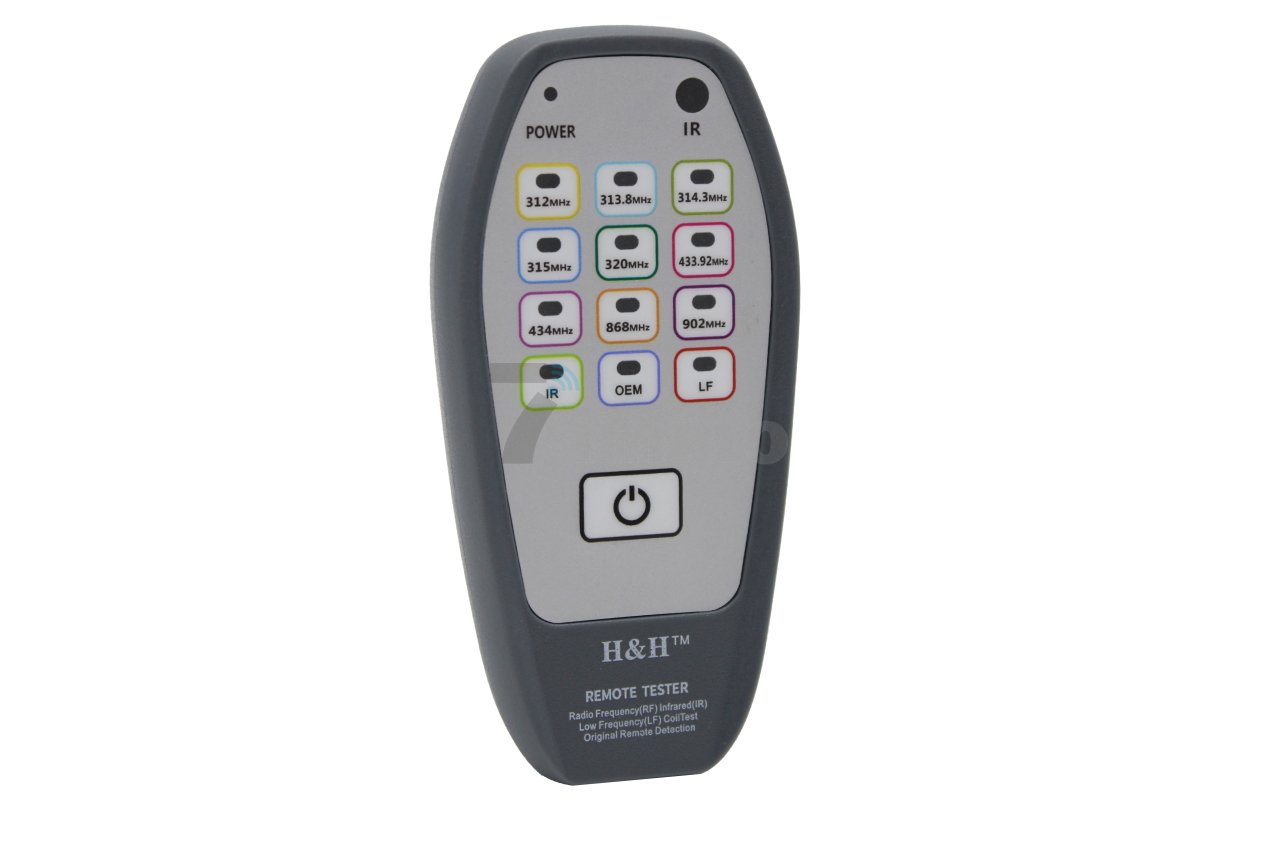

H&H REMOTE CONTROL FREQUENCY/ IR / LF COIL TESTER

[ User's manual ]

Thank you very much for purchasing our remote frequency tester, which our company has developed with years of experience and combined with the advanced technology of its domestic and foreign counterparts, to facilitate you to use the device correctly, please read this manual carefully first. operation.

01/Product Description



















VEHICLE REMOTE CONTROLLER FREQUENCY TEST

①Power Indicator

When the frequency tester is turned on and goes into working state, the Power indicator lights up and

steady light state and the indicator turns off after power off.

②Car Remote Frequency Display

To test the common frequency of the car remote control, when the frequency tester detects a certain

The indicator light corresponding to the frequency will turn on and flash and a beep will sound.

③IR Infrared Frequency Display

When the frequency tester receives the signal of the frequency, it can test the carrier 38KHz infrared frequency, then the indicator lights up and flashes.

④LF Indicator

It can test IMMO / PKE low frequency coil transmission frequency 22KHz / 125KHz / 134.2KHz. Frequency tester When the frequency tester receives these frequencies, the indicator lights up and flashes.

⑤OEM Indicator

It can distinguish whether it is the original remote control used to test the Toyota smart card.

⑥Power

Turn the detector on and off.

02/Product Description

VEHICLE REMOTE CONTROLLER FREQUENCY TEST

Short press the power button to turn on the device, the power indicator is on, the OEM indicator is off















Place the remote control near the detector and press any of the buttons on the remote control.







The corresponding frequency signal light on the detector will flash and beep indicating successful detection.











IR INFRARED FREQUENCY TEST

Short press the power button to turn on the device, the power indicator is on, the OEM indicator is off









Place the remote control near the detector and press any of the buttons on the remote control.







The corresponding IR frequency signal light on the detector will turn on, the corresponding frequency signal light will flash and beep.









OEM ORIGINAL REMOTE CONTROLLER





Short press the power button to turn on the device, the power indicator lights up, short

press the power button again, the OEM indicator lights up and enters the steady light state









Bring the original remote control closer to the detector.







The corresponding OEM signal light on the detector will flash and beep indicating successful detection.











LF LOW FREQUENCY COIL TEST

Short press the power button to turn on the device, the power indicator is on, the OEM indicator is off







Move the tester close to the ignition lock of the car and turn the key to ignite the car.







The corresponding LF coil signal light on the detector will flash and beep indicating successful detection, and if there is no response, it indicates a malfunction in the ignition lock coil.
