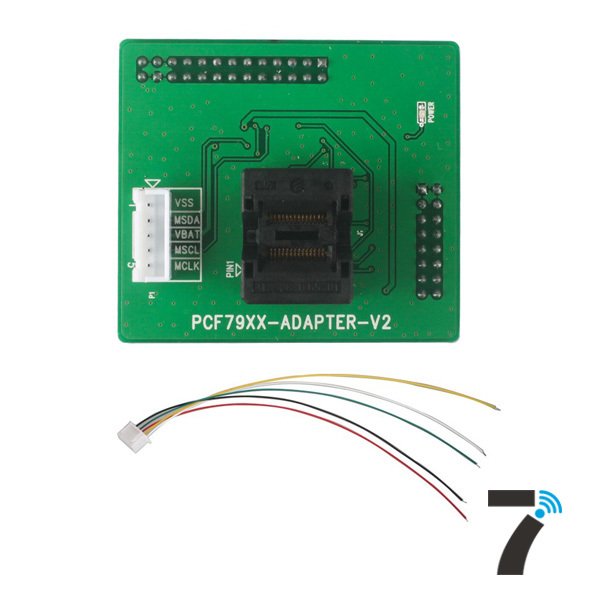

Xhorse PCF79XX Adapter for VVDI Prog

If PROG VV H - PCF79XX Adapter

1. Chip Supported Models:
PCF7922
PCF7941
PCF7945
PCF7952
PCF7953
PCF7961

2. Two Optional Ways To Write Chip PCF79XX
· Remove and place in the IC chip socket, as shown below "PCF79XX chip" select.

· Connect the cable to the circuit board, as shown below "PCF79XX adapter" select.

Note: If the option PCF79XX adapter circuit of the chip card to be affected due to recognize, just put the interests of the chip and IC socket, then to run "PCF79XX chip" use the option.

3. Options and Descriptions
· EEPROM data storage, can read and write protected state.
· ERO I: program memory space (equal to the area of the other chip FLASH), can read and write in an unprotected state.
· Protected: To lock the chip and chip data not being able to look at the "protected" click.
· Unprotected: unlock the chip and chip to read the data "unprotected" Click. Once unlocked, the original data on the chip will be deleted.

4. Chip Function PCF79XX
Currently PCF79XX chip data locking, unlocking and read / write support.

Package Included:
1 x PCF79XX-Adapter
